Angle bracket for short-circuit wire on gabions
:quality(98)/dehnab.se/store/f/38071906/HDVORSCHAU/419750a1.jpg)
:quality(98)/dehnab.se/store/f/38071906/HDVORSCHAU/419750a1.jpg)

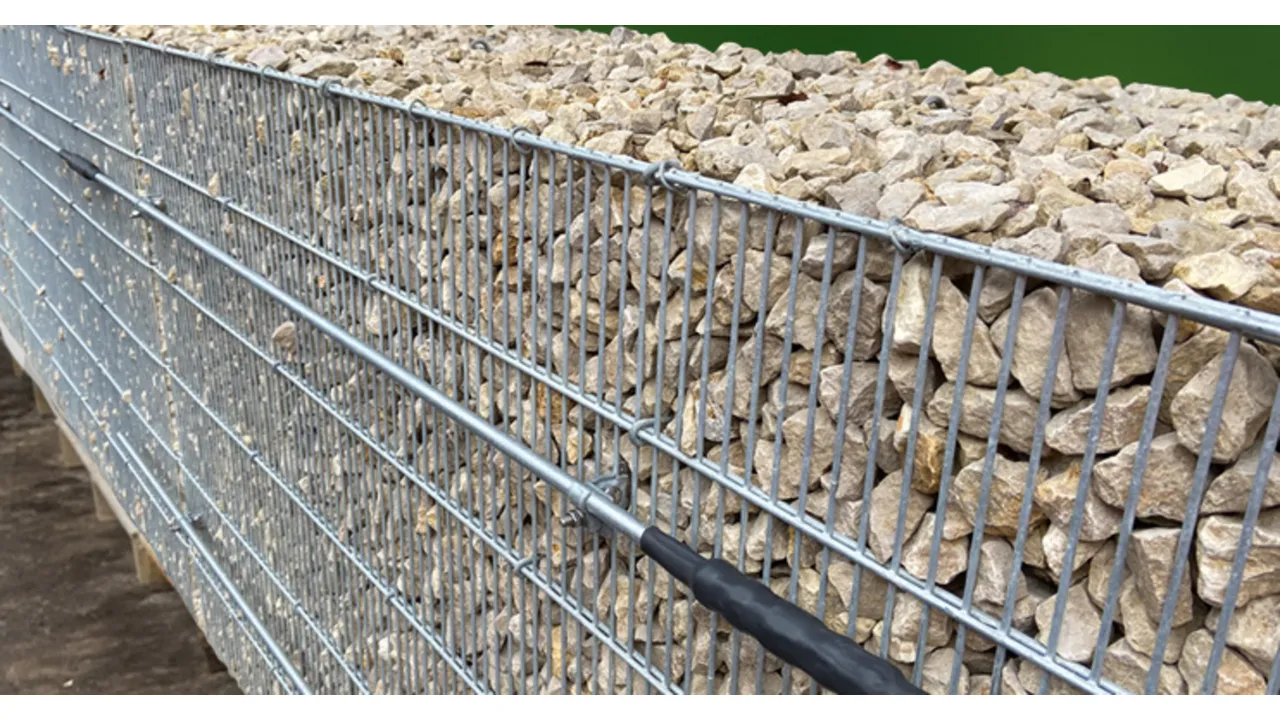

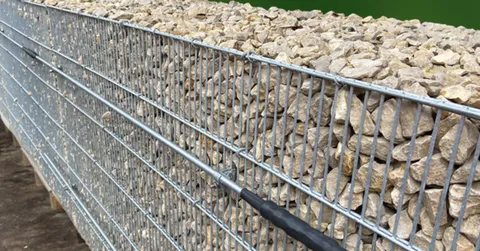

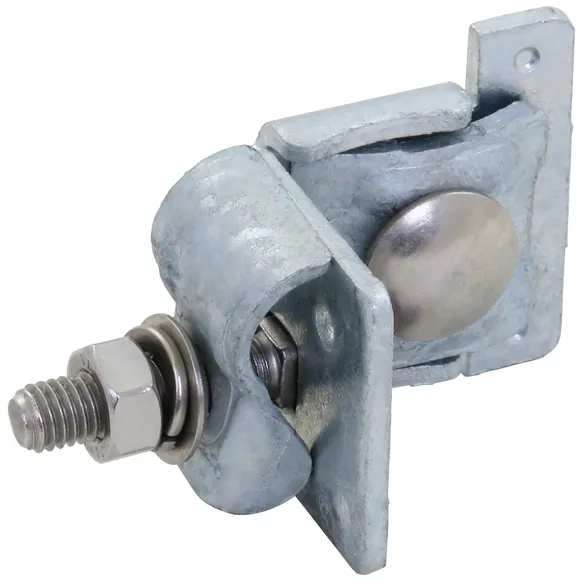

Bracket for short-circuit wire on stone gabions
Part No. 419750 LH DQ 16 KBG 4.8 W STTZN/3 EBS 15.03.47
GTIN 4013364486898, Customs tariff No. (EU): 85389099, Gross weight: 164.40 g, PU: 50.00 pc(s)
:quality(98)/dehnab.se/store/f/38071912/HDVORSCHAU/419750.jpg)
:quality(98)/dehnab.se/store/f/38071912/HDVORSCHAU/419750.jpg)
:quality(98)/dehnab.se/store/f/38071913/HDVORSCHAU/419750m.jpg)
:quality(98)/dehnab.se/store/f/38071913/HDVORSCHAU/419750m.jpg)

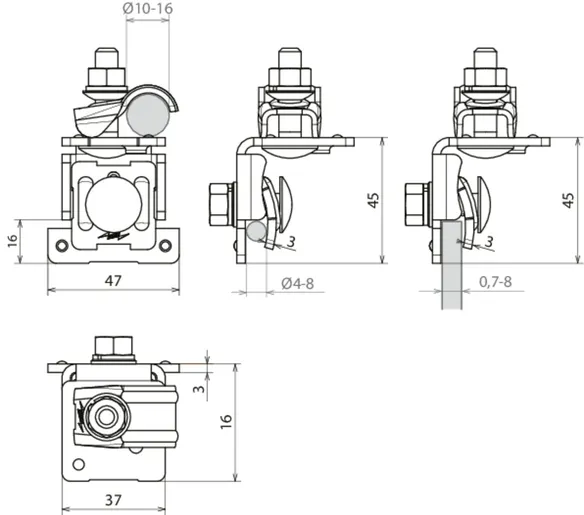

Technical data
| Bar clamping range | 4-8 mm |
| Clamp material | St/tZn |
| Clamping range Rd | 16 mm |
| Screw | e M8 x 25 mm, e M8 x 35 mm |
| Material of screw / nut | StSt |
| Design with | Spring washer and spherical washer |
